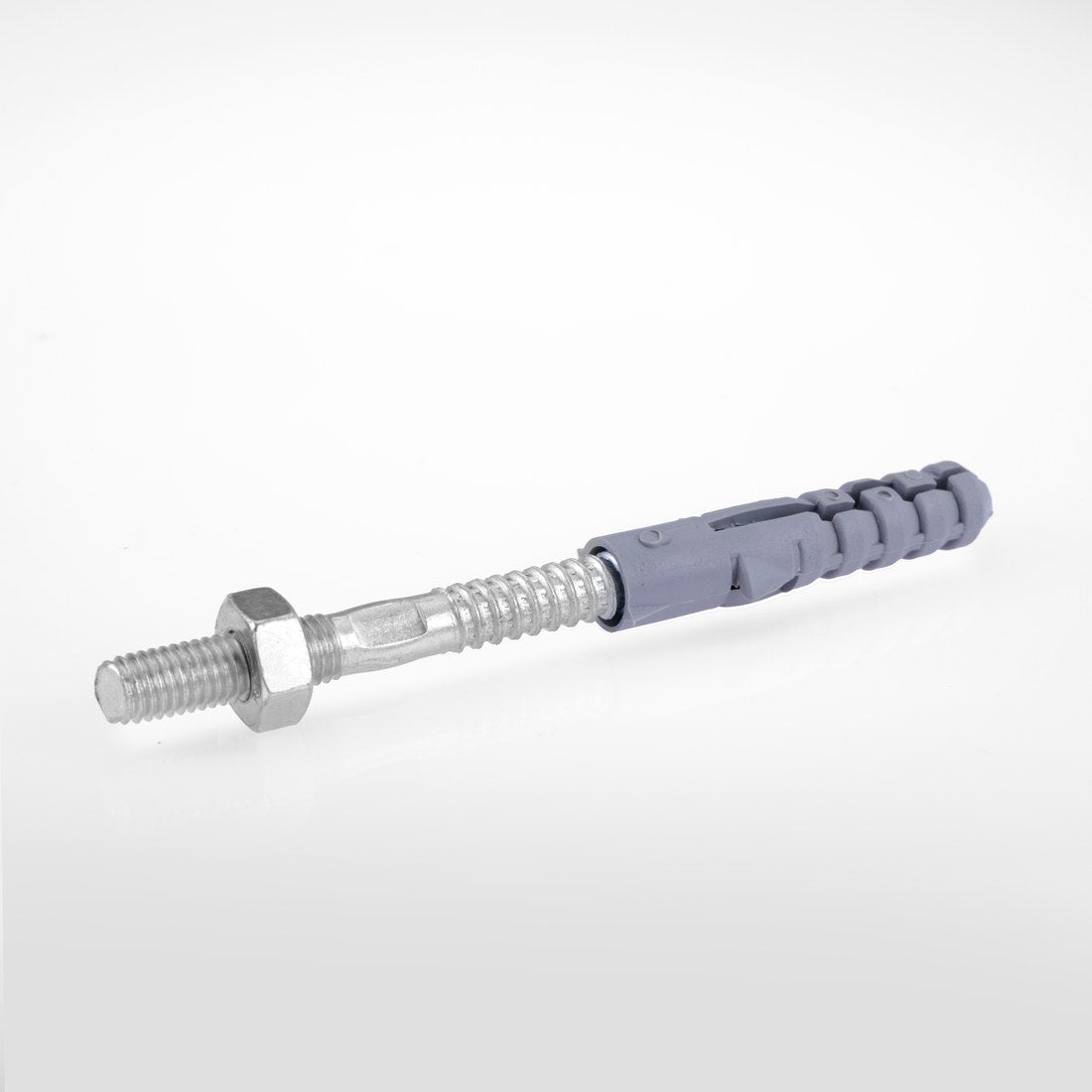

Double-Thread Screw with Wall Plug
Manufactured in Egypt by AFROFIX. Prices and availability on request.
Overview
The AFROFIX double-thread screw with wall plug fixes support elements to walls, using a woodscrew thread in a suitable wall plug and a machine thread for the support. Sizes are M6 to M10, and lengths can be made to order.
The screws are made in Egypt from A36 carbon steel, plain or zinc plated, for fixing pipe clamps and supports to masonry walls.
It is part of the AFROFIX range of threaded rod, anchors and fixings, within our complete range of electromechanical supports, manufactured in Egypt since 1981. Send us your drawings or BOQ for a quotation.
Allow the installation of different support elements to the wall using a woodscrew thread and a suitable wall plug
Specification
| Size range | From M6 to M10 |
|---|---|
| Material | Carbon steel A36 |
| Finish | Plain (black steel), Zinc plating |
Features
- Length can be customized according to the need
Sizes and part numbers
| Part no | M | d | L | L1 | L2 |
|---|---|---|---|---|---|
| DTS-08080 | M8 | 8 | 80 | 25 | 40 |
| DTS-10100 | M10 | 10 | 100 | 25 | 55 |
Catalogue reference: page 41.
