Standard Band Hanger (Swivel Ring)
Manufactured in Egypt by AFROFIX. Prices and availability on request.
Overview

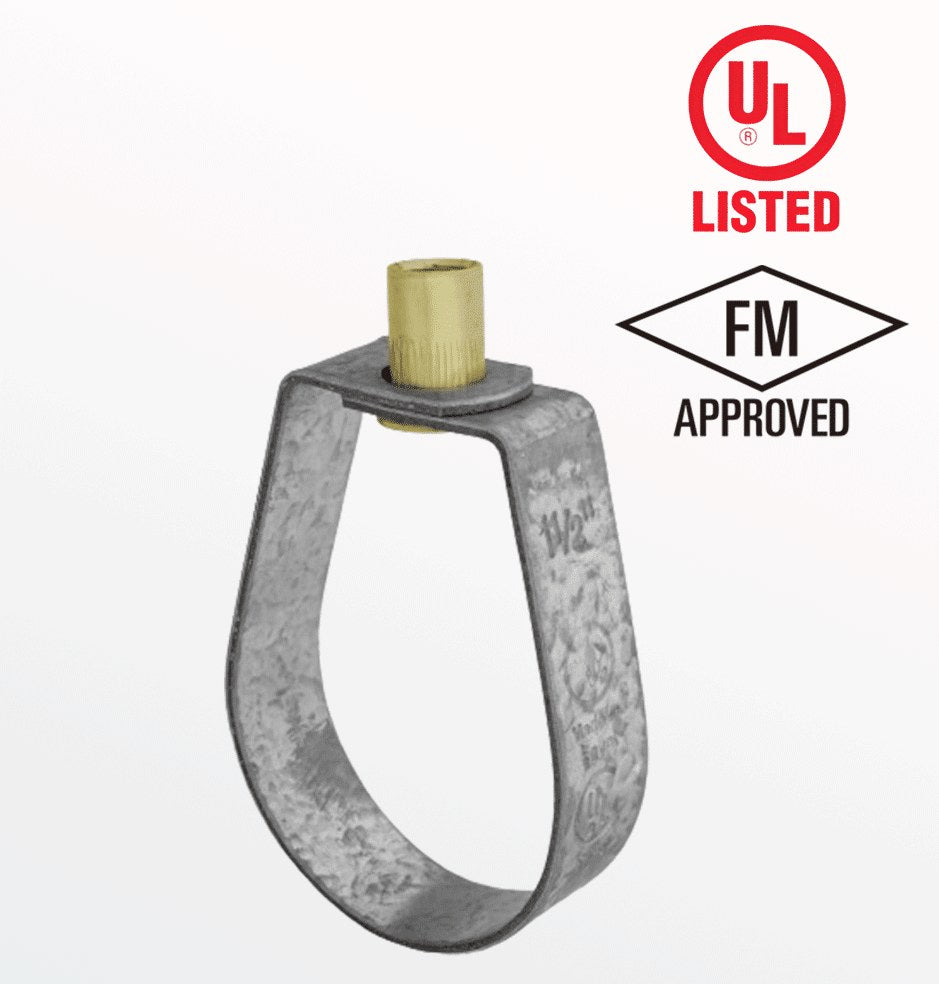

The AFROFIX band hanger (swivel ring hanger) is a UL Listed and FM Approved pipe hanger for horizontal pipes from 3/4" (20 mm) to 6" (150 mm). A swivel nut makes the pipe easy to install, and the hanger stays adjustable vertically on its rod.
Band hangers are made in Egypt from pre-galvanized carbon steel to ASTM A653M, supplied plain, pre-galvanized or hot-dip galvanized. They are the standard hanger for sprinkler branch lines and light fire-fighting pipework.
It is part of the AFROFIX range of fire fighting pipe supports and pipe hangers and clamps, within our complete range of electromechanical supports, manufactured in Egypt since 1981. Send us your drawings or BOQ for a quotation.
To support insulated & non-insulated horizontal pipes
Specification
| Size range | 3/4" (20 mm) to 6"(150 mm) |
|---|---|
| Material | Pre-galvanized Carbon steel, according to ASTM A653M |
| Finish | Plain (black steel), pre-galvanized, or hot dip galvanized |
| Approvals | UL Listed, FM Approved |
Features
- Allow vertical adjustment for the hanger
- With a swivel nut to facilitate the pipe installation
Compliance
- Complies with the FM standard: FM 1951, 1952, 1953 (December 2016)
- Complies with the Manufacturers Standardization Society MSS SP-58 Type 10
- Complies with the UL 203 (Pipe hanger equipment for fire protection service)
- Complies with the National Fire Protection Association (NFPA) section 13
Notes
- The UL-listed sizes are ¾" to 2" only (pre-galvanized)
- The FM-approved sizes are ¾" to 2" only
- Hanger rod is not included. Nominal pipe size Design Load Inch mm (KN)
Sizes and part numbers
| Part no | inch | mm | D | A | B | H | M | Design Load (KN) |
|---|---|---|---|---|---|---|---|---|
| SBH-035 | 3/4 | 20 | 35.0 | 52.5 | 21.0 | 72.0 | M10 | 3.1 |
| SBH-038 | 1 | 25 | 38.5 | 62.0 | 26.0 | 83.0 | M10 | 3.1 |
| SBH-045 | 1 1/4 | 32 | 45.0 | 66.0 | 26.0 | 90.5 | M10 | 3.1 |
| SBH-059 | 1 1/2 | 40 | 59.0 | 70.0 | 29.5 | 101.0 | M10 | 3.1 |
| SBH-065 | 2 | 50 | 65.0 | 84.0 | 34.5 | 118.5 | M10 | 3.1 |
| SBH-077 | 2 1/2 | 65 | 77 | 91.7 | 28.7 | 134.7 | M10 | 3.1 |
| SBH-095 | 3 | 75 | 95 | 116.4 | 44.4 | 168.4 | M12 | 5.2 |
| SBH-120 | 4 | 100 | 120 | 116.4 | 31.9 | 181.9 | M12 | 5.2 |
| SBH-145 | 5 | 125 | 145 | 143.2 | 46.2 | 221.2 | M12 | 5.2 |
| SBH-175 | 6 | 150 | 175 | 171.0 | 59.0 | 264.0 | M12 | 5.2 |
Catalogue reference: page 14.
