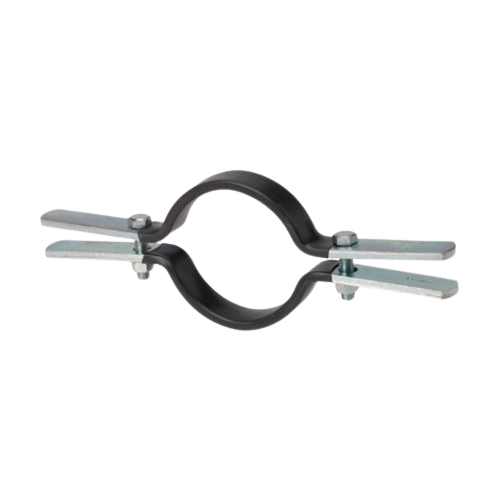

Riser Clamp with PVC
Manufactured in Egypt by AFROFIX. Prices and availability on request.
Overview
The AFROFIX riser clamp with PVC supports vertical pipe runs from 1/2" (15 mm) to 24" (600 mm), with PVC that protects the pipe surface where it meets the clamp. It is FM Approved for sizes 2" to 8", and its long wings transfer the riser's load onto the floor or ceiling slab.
These riser clamps are made in Egypt from A36 carbon steel, plain, zinc plated or hot-dip galvanized, for fire-fighting and plumbing risers where the pipe finish needs protecting.
It is part of the AFROFIX range of fire fighting pipe supports and pipe hangers and clamps, within our complete range of electromechanical supports, manufactured in Egypt since 1981. Send us your drawings or BOQ for a quotation.
To support and stabilize vertical pipes runs
Specification
| Size range | From 1/2" (15 mm) to 24"(600 mm) |
|---|---|
| Material | Carbon steel A36 |
| Finish | Plain (black steel), zinc plated, or hot-dip galvanized |
| Approvals | FM Approved |
Features
- The riser clamp is preferably installed below a coupling hub or field welded shear lugs
- The riser clamp has long wings to transfer the riser's load to the floor or to the ceiling
- Rounded ends provide greater safety for personnel
- A PVC lining can be used to prevent contact between the pipe & the clamp (in the case of copper pipes)
Compliance
- Complies with the FM standard: FM 1951, 1952, 1953 (December 2016)
- Meets the Manufacturers Standardization Society MSS SP-58 Type 8 and NFPA 13
Notes
- The FM approved sizes are 2" to 8" only
Sizes and part numbers
| Part no | inch | mm | D | A | B | C | H | L | M | Recommended Torque (N.m) |
|---|---|---|---|---|---|---|---|---|---|---|
| RCS-025 | 1/2 | 15 | 20-25 | 69 | 12 | 7 | 38 | 211 | M10 | 15 |
| RCS-028 | 3/4 | 20 | 25-28 | 72 | 12 | 7 | 41 | 214 | M10 | 15 |
| RCS-038 | 1 | 25 | 32-38 | 82 | 12 | 7 | 51 | 224 | M10 | 15 |
| RCS-045 | 1 1/4 | 32 | 40-45 | 91 | 12 | 7 | 60 | 243 | M10 | 15 |
| RCS-055 | 1 1/2 | 40 | 48-55 | 101 | 12 | 7 | 70 | 253 | M10 | 15 |
| RCS-067 | 2 | 50 | 60-67 | 113 | 12 | 7 | 82 | 265 | M10 | 15 |
| RCS-075 | 2 1/2 | 65 | 70-75 | 127 | 14 | 10 | 93 | 273 | M12 | 15 |
| RCS-095 | 3 | 80 | 88-95 | 147 | 14 | 10 | 113 | 303 | M12 | 15 |
| RCS-120 | 4 | 100 | 110-120 | 176 | 14 | 10 | 142 | 332 | M12 | 68 |
| RCS-145 | 5 | 125 | 140-145 | 201 | 14 | 12 | 169 | 357 | M12 | 68 |
| RCS-175 | 6 | 150 | 160-175 | 237 | 17 | 12 | 199 | 407 | M16 | 70 |
| RCS-225 | 8 | 200 | 210-225 | 291 | 17 | 12 | 253 | 461 | M16 | 70 |
| RCS-280 | 10 | 250 | 270-280 | 346 | 17 | 12 | 308 | 516 | M16 | 70 |
| RCS-330 | 12 | 300 | 315-330 | 400 | 17 | 12 | 362 | 580 | M16 | 70 |
Catalogue reference: page 20.
