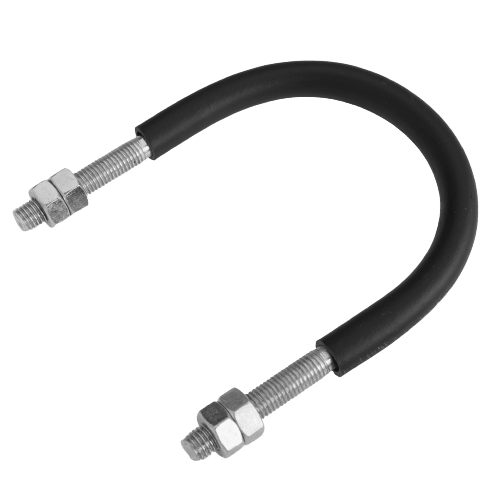

Standard U-Bolt with PVC Hose

Manufactured in Egypt by AFROFIX. Prices and availability on request.

Overview

The AFROFIX U-bolt with PVC hose fixes, supports or guides pipes onto support elements and channels, with a PVC hose that protects the pipe surface. Sizes run from 1/2" (15 mm) to 10" (250 mm).

These U-bolts are made in Egypt from A36 carbon steel, plain, zinc plated or hot-dip galvanized, with stainless steel available on request.

It is part of the AFROFIX range of fire fighting pipe supports and pipe hangers and clamps, within our complete range of electromechanical supports, manufactured in Egypt since 1981. Send us your drawings or BOQ for a quotation.

Fix, support, or guide pipes to support elements and PVC channels. hose

Specification

Size range	From 1/2" (15 mm) to 10"(250 mm)
Material	Carbon steel A36 (stainless steel can be used upon request)
Finish	Plain (black steel), zinc plated, or hot dip galvanized

Features

Considered as an easy & time-saving element

Compliance

Complies with the Manufacturers Standardization Society SP-58 Type 24
The nuts comply with DIN 934 and ASTM A563

Notes

The MSS compliant sizes are 2 ½" to 10" only
MSS compliant ½" to 2" are available upon request
Sizes larger than 10" are available upon request. Nominal pipe Pipe D O.D (Max pipe O.D) Inch mm

Sizes and part numbers

Part no	inch	mm	Pipe O.D	D (Max pipe O.D)	A	B	C	H	L	M
UBSP-025	1/2	15	21.3	24	33	45	8	72	41	M8
UBSP-030	3/4	20	26.7	29	38	45	8	78	46	M8
UBSP-038	1	25	33.4	37	46	45	8	85	54	M8
UBSP-046	1 1/4	32	42.1	45	54	45	8	94	62	M8
UBSP-054	1 1/2	40	48.2	53	62	45	8	103	70	M8
UBSP-064	2	50	60.3	63	72	45	8	112	80	M8
UBSP-082	2 1/2	65	73	81	92	50	10	131	102	M10
UBSP-094	3	75	88.9	93	104	50	10	145	114	M10
UBSP-120	4	100	114.3	119	130	50	10	171	140	M10
UBSP-148	5	125	141.3	147	158	50	10	202	168	M10
UBSP-176	6	150	168.3	175	188	60	12	231	200	M12
UBSP-228	8	200	219.1	227	240	60	12	282	252	M12
UBSP-282	10	250	273	281	298	65	16	344	314	M16
