Steel Structure Support
Beam Clamp for Pipes
Manufactured in Egypt by AFROFIX. Prices and availability on request.
Overview

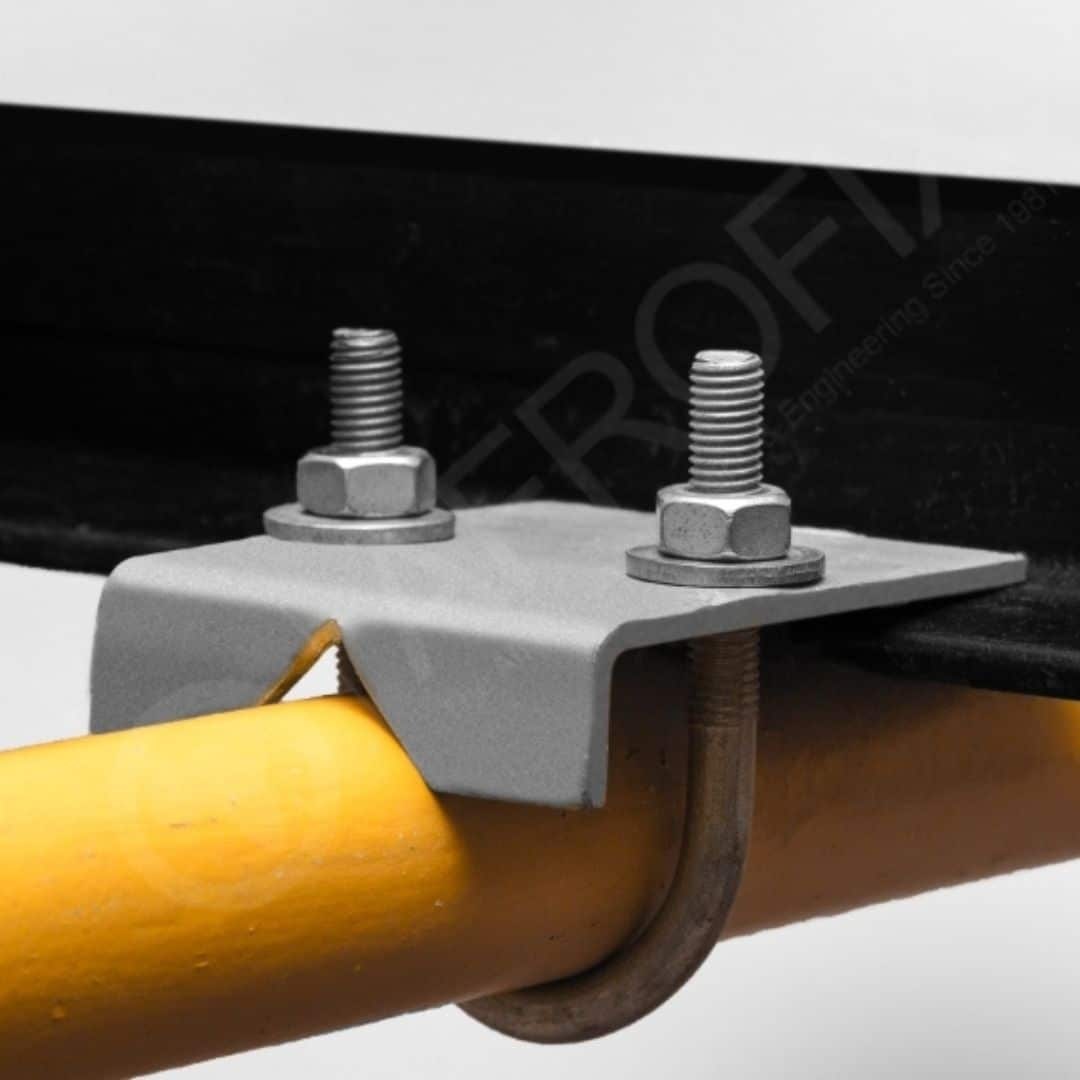

The AFROFIX beam clamp for pipes fixes horizontal pipes from 1/2" (15 mm) to 4" (100 mm) directly to the flange of a steel beam, on flanges up to 20 mm thick. Its simple design cuts installation time.
These beam clamps are made in Egypt from A36 carbon steel, zinc plated or hot-dip galvanized, with stainless steel available on request.
It is part of the AFROFIX range of beam clamps and steel structure supports and pipe hangers and clamps, within our complete range of electromechanical supports, manufactured in Egypt since 1981. Send us your drawings or BOQ for a quotation.
To attach horizontal pipes to the flange of a beam
Specification
| Size range | From 1/2" (15 mm) to 4"(100 mm) |
|---|---|
| Material | Carbon steel A36 (stainless steel can be used upon request) |
| Finish | Zinc plated, or hot-dip galvanized. Nominal pipe size inch mm |
Features
- Reduce installation time due to its simplicity
- Maximum beam's flange thickness 20 mm
- Always used in pairs
Sizes and part numbers
| Part no | inch | mm | D | A | B | H | M |
|---|---|---|---|---|---|---|---|
| BCC-025 | ½ | 15 | 25 | 33 | 64 | 59.8 | M8 |
| BCC-030 | ¾ | 20 | 30 | 38 | 69 | 67.0 | M8 |
| BCC-038 | 1 | 25 | 38 | 46 | 77 | 74.2 | M8 |
| BCC-046 | 1 ¼ | 32 | 46 | 54 | 85 | 83.9 | M8 |
| BCC-054 | 1 ½ | 40 | 54 | 62 | 93 | 97.2 | M8 |
| BCC-064 | 2 | 50 | 64 | 72 | 103 | 112.9 | M8 |
| BCC-082 | 2 ½ | 65 | 82 | 92 | 125 | 130.6 | M10 |
| BCC-094 | 3 | 75 | 94 | 104 | 137 | 146.3 | M10 |
| BCC-120 | 4 | 100 | 120 | 130 | 163 | 172.8 | M10 |
Catalogue reference: page 28.
