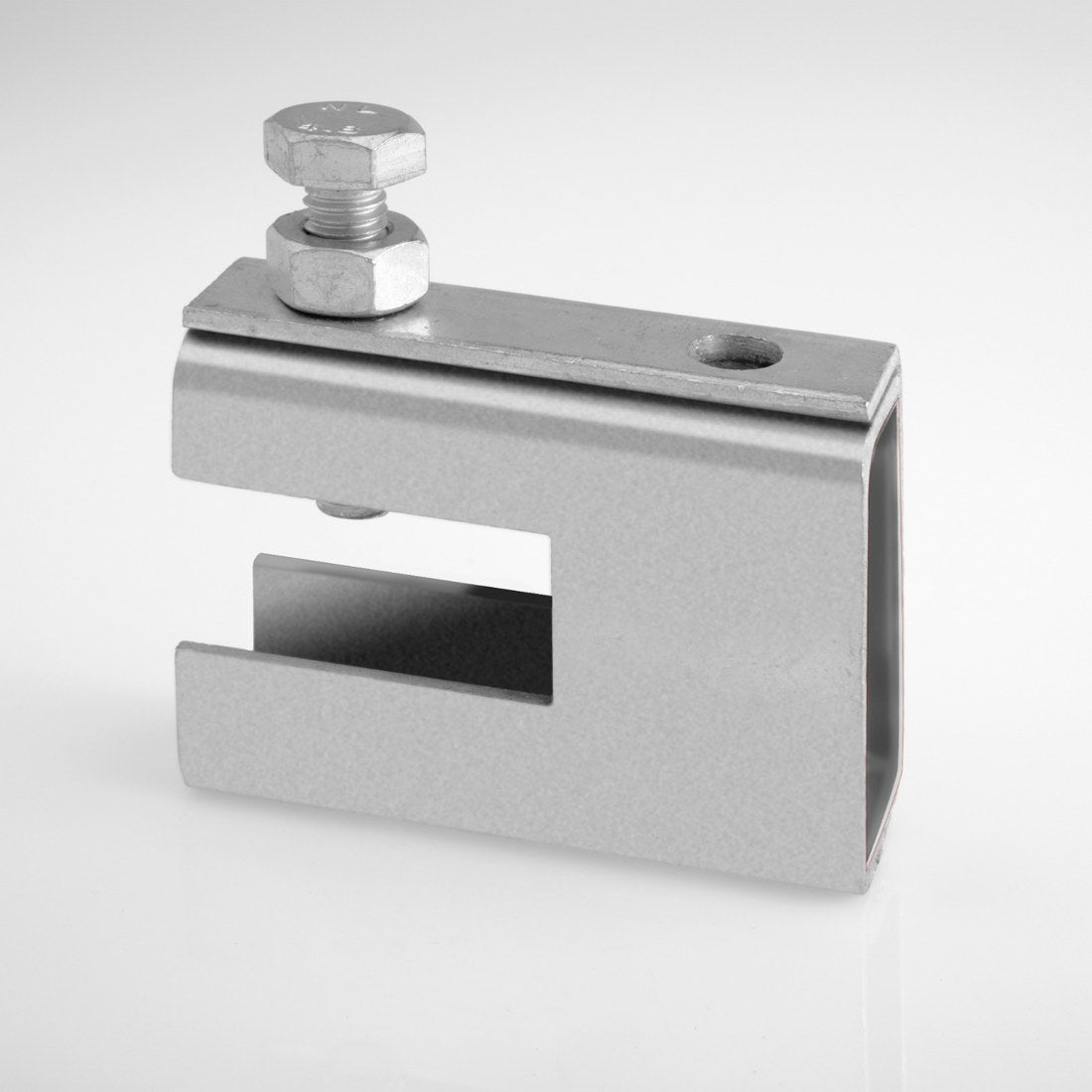

Beam Clamp Type B
Manufactured in Egypt by AFROFIX. Prices and availability on request.
Overview
The AFROFIX beam clamp Type B attaches a vertical rod to the flange of a steel beam where the rod needs to be offset from the flange edge. It fits beams in either the top or bottom position, on flanges up to 17.5 mm thick.
Type B beam clamps are made in Egypt from A36 carbon steel, zinc plated or hot-dip galvanized, with stainless steel available on request. They let pipe supports be fixed to structural steel without welding or drilling.
It is part of the AFROFIX range of beam clamps and steel structure supports, within our complete range of electromechanical supports, manufactured in Egypt since 1981. Send us your drawings or BOQ for a quotation.
To attach a vertical rod to the flange of a beam where it is required to be offset from the edge of the flange
Specification
| Material | Carbon steel A36 (stainless steel can be used upon request) |
|---|---|
| Finish | Zinc plated, or hot-dip galvanized. Design Load (KN) |
Features
- It may be attached to flanges of structural members in either the top beam or bottom beam positions
- Maximum beam's flange thickness 17.5 mm
- Secured in place by a Set Screw tightened against the flange with a locknut
- It has two positions for the attached rod, a zero-moment position and the offset position
- Permits unlimited vertical rod adjustment in the offset position
- The open design permits inspection of thread engagement. Sizes: 10 & 12 & 16 mm threaded rod
Compliance
- Complies with the Manufacturers Standardization Society MSS SP-58 Type 19
Sizes and part numbers
| Part no | M1 | M2 | Design Load (KN) |
|---|---|---|---|
| BCB-010 | M10 | M10 | 2.35 |
| BCB-012 | M12 | M12 | 2.35 |
| BCB-016 | M16 | M16 | 2.35 |
Catalogue reference: page 27.
