Beam Clamp Type A
Manufactured in Egypt by AFROFIX. Prices and availability on request.
Overview

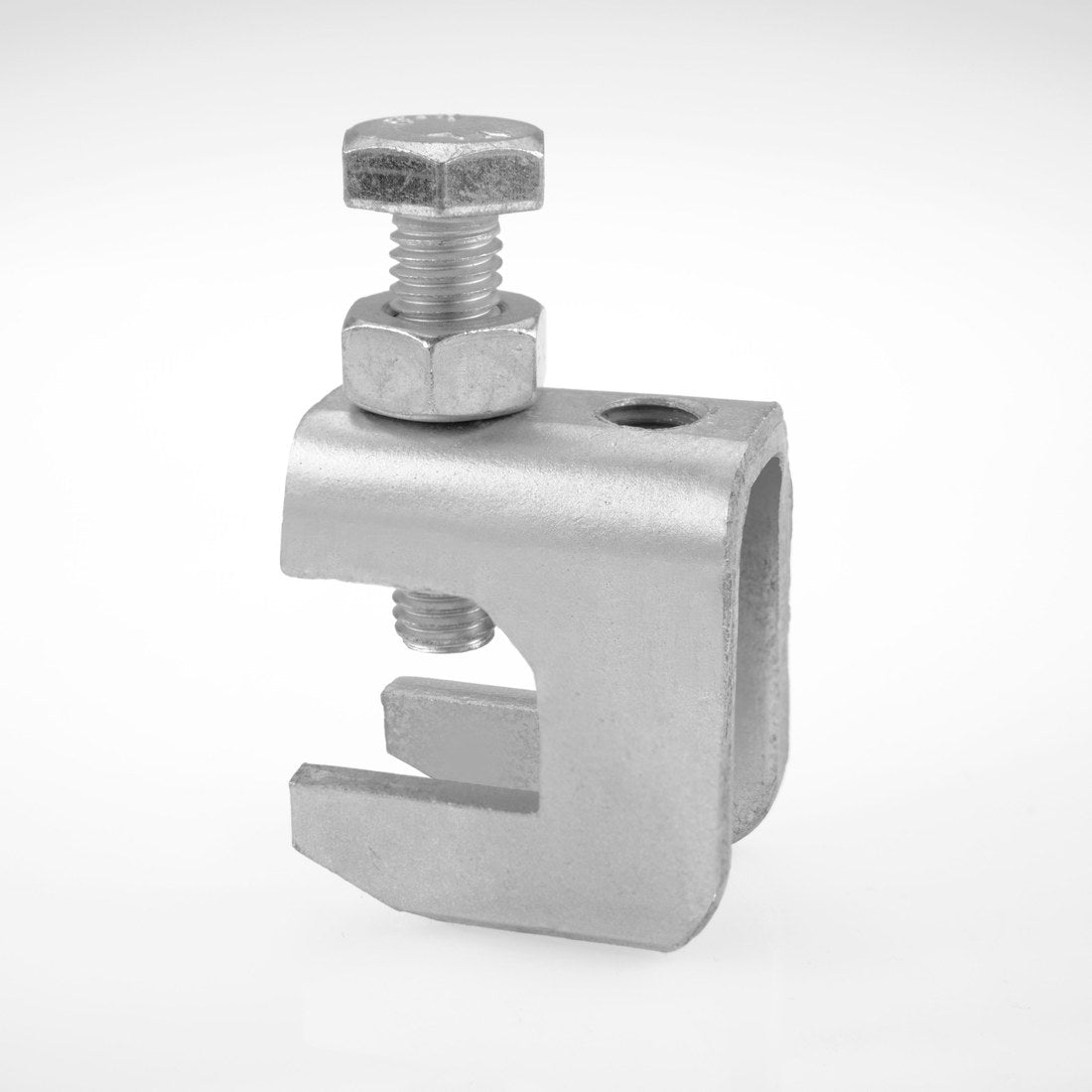

The AFROFIX beam clamp Type A attaches a vertical threaded rod (8 mm to 10 mm) to the flange of a steel beam where the rod needs to be offset from the flange edge. It fits beams in either the top or bottom position, on flanges up to 20 mm thick.
Type A beam clamps are made in Egypt from A36 carbon steel, zinc plated or hot-dip galvanized. They let pipe hangers be fixed to structural steel without welding or drilling.
It is part of the AFROFIX range of beam clamps and steel structure supports, within our complete range of electromechanical supports, manufactured in Egypt since 1981. Send us your drawings or BOQ for a quotation.
To attach a vertical rod to the flange of a beam where it is required to be offset from the edge of the flange
Specification
| Size range | From 8 to 10 mm threaded rods |
|---|---|
| Material | Carbon steel A36 |
| Finish | Zinc plated, or hot-dip galvanized. Design Load (KN) |
Features
- It may be attached to horizontal flanges of structural members in either the top beam or bottom beam positions
- Maximum beam's flange thickness 20mm
- Secured in place by a cup-pointed Set Screw tightened against the flange
- Permits unlimited vertical rod adjustment
- The open design permits inspection of thread engagement
Compliance
- Complies with the Manufacturers Standardization Society MSS SP-58 Type 19
Sizes and part numbers
| Part no | M1 | M2 | Design Load (KN) |
|---|---|---|---|
| BCA-008 | M8 | M8 | 2.35 |
| BCA-010 | M10 | M10 | 2.35 |
Catalogue reference: page 26.
