Beam Clamp for SAM Strut Channels
Manufactured in Egypt by AFROFIX. Prices and availability on request.
Overview

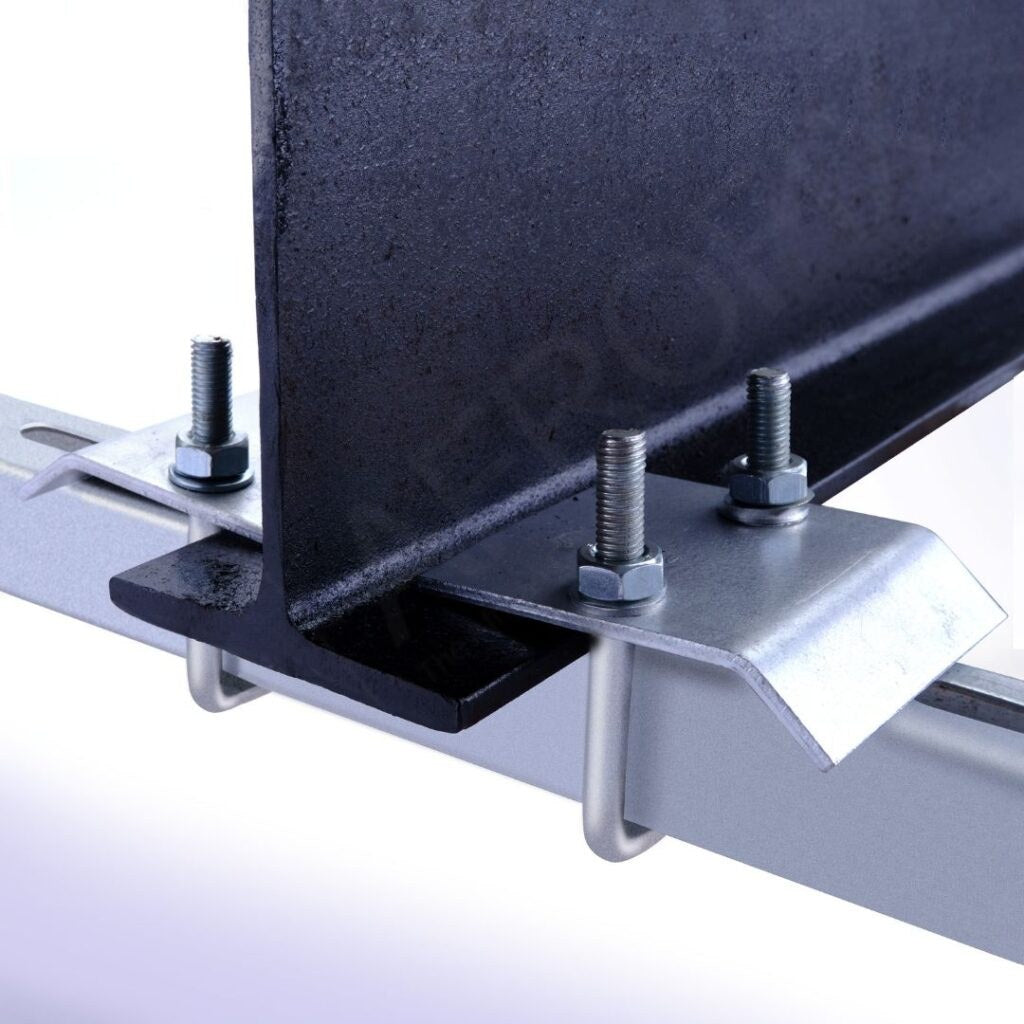

The AFROFIX beam clamp for SAM strut channels attaches strut channel to the flange of a steel beam. It is always used in pairs and suits a 39.6 mm SAM channel, or a back-to-back double channel.
These beam clamps are made in Egypt from A36 carbon steel, zinc plated or hot-dip galvanized, with stainless steel available on request, so strut frames can be hung from steel with no welding or drilling.
It is part of the AFROFIX range of SAM strut channel system, within our complete range of electromechanical supports, manufactured in Egypt since 1981. Send us your drawings or BOQ for a quotation.
To attach different SAM strut channels to the flange of a beam
Specification
| Material | Carbon steel A36 (stainless steel can be used upon request) |
|---|---|
| Finish | Zinc plated, or hot-dip galvanized. Square U-bolt part no Used with SAM strut channel with a height of 39.6 mm Or a double channel with a height of 19.6 m back to back |
Features
- Reduce installation time due to its simplicity
- Always used in pairs
- Steel size: 85x4 mm
- Max flange thickness 29 mm
Sizes and part numbers
| Part no | H | SAM strut channel | Usage |
|---|---|---|---|
| BCSC-063 | 63 | SUB-085 | Used with SAM strut channel with a height of 19.6 mm |
| BCSC-083 | 83 | SUB-105 | Used with SAM strut channel with a height of 39.6 mm |
| BCSC-123 | 123 | SUB-145 | Used with SAM strut double channel with a height of 39.6 mm back to back |
Catalogue reference: page 29.
