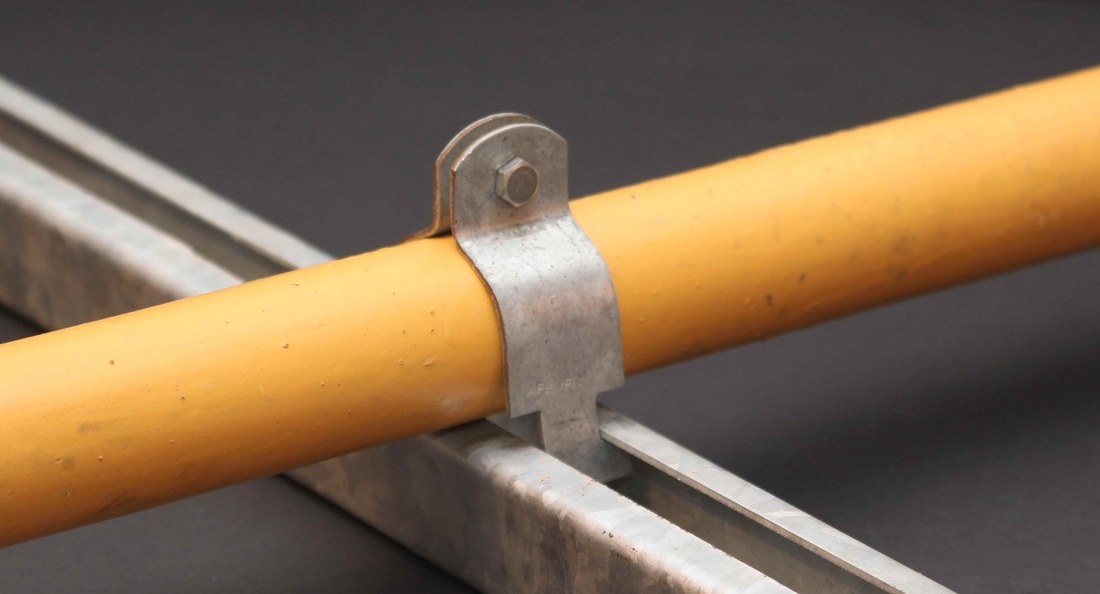

Pipe Clamp on SAM Strut Channels
Manufactured in Egypt by AFROFIX. Prices and availability on request.
Overview
The AFROFIX pipe clamp for SAM strut channels fixes EMT, IMC and GRC conduit, cables and pipes from 1/2" (15 mm) to 4" (100 mm) onto strut channel. It works with different SAM channel sizes and saves installation time.
These strut pipe clamps are made in Egypt from A36 carbon steel, plain, zinc plated or hot-dip galvanized, with stainless steel available on request.
It is part of the AFROFIX range of SAM strut channel system and pipe hangers and clamps, within our complete range of electromechanical supports, manufactured in Egypt since 1981. Send us your drawings or BOQ for a quotation.
To support EMT, IMC, GRC conduit and cables to SAM strut channels
Specification
| Size range | From 1/2" (15 mm) to 4"(100 mm) |
|---|---|
| Material | Carbon steel A36 (stainless steel can be used upon request) |
| Finish | Plain (black steel), zinc plated, or hot-dip galvanized. Nominal pipe size inch mm |
Features
- Save installation time
- Can be used with different SAM strut channel sizes
Sizes and part numbers
| Part no | inch | mm | D | H | M | Steel size |
|---|---|---|---|---|---|---|
| SAM2-022 | ½ | 15 | 17-22 | 44 | M6x20 | 30x2 |
| SAM2-027 | ¾ | 20 | 23-27 | 50 | M6x20 | 30x2 |
| SAM2-034 | 1 | 25 | 29-34 | 56 | M6x20 | 30x2 |
| SAM2-043 | 1 ¼ | 32 | 38-43 | 65 | M6x20 | 30x2 |
| SAM2-049 | 1 ½ | 40 | 44-49 | 71 | M6x20 | 30x2 |
| SAM2-061 | 2 | 50 | 55-61 | 82 | M6x20 | 30x2 |
| SAM2-075 | 2 ½ | 60 | 72-75 | 99 | M6x20 | 30x2 |
| SAM2-090 | 3 | 75 | 87-90 | 114 | M6x20 | 30x2 |
| SAM2-115 | 4 | 100 | 112-115 | 139 | M6x20 | 30x2 |
Catalogue reference: page 39.
