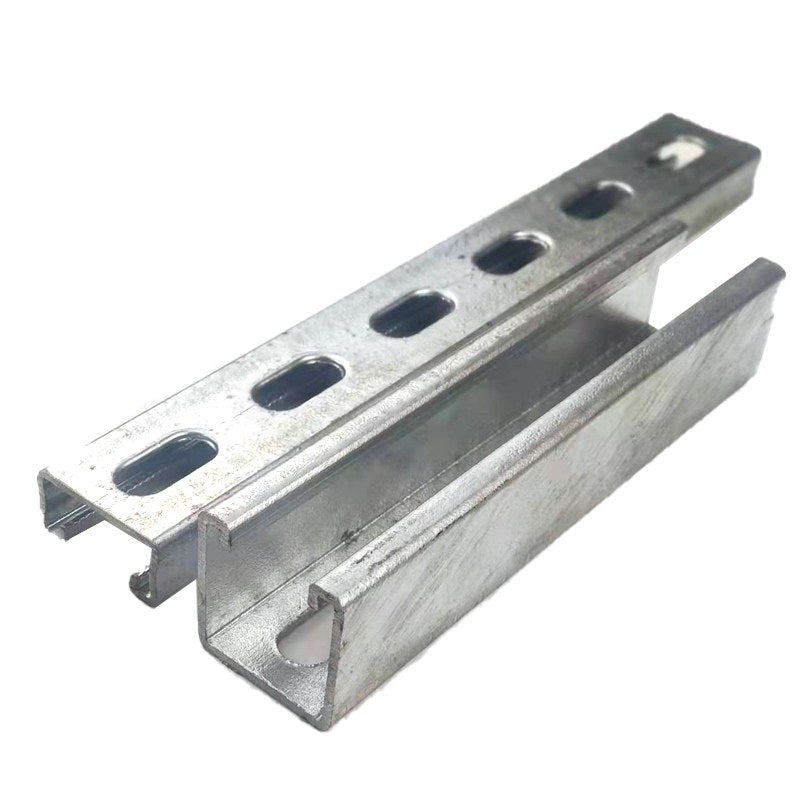

SAM Strut Channels
Manufactured in Egypt by AFROFIX. Prices and availability on request.
Overview
AFROFIX SAM strut channels are the main element of the SAM strut framing system, used to build trapeze and cantilever supports for pipes, ducts, cable trays and conduit. The slotted channel is quick and simple to install and adjust on site.
SAM strut channels are made in Egypt from A36 carbon steel, plain, zinc plated or hot-dip galvanized, with stainless steel available on request, for electromechanical supports in buildings and industrial plants.
It is part of the AFROFIX range of SAM strut channel system, within our complete range of electromechanical supports, manufactured in Egypt since 1981. Send us your drawings or BOQ for a quotation.
Main elements in the SAM strut framing system, used as support elements
Specification
| Material | Carbon steel A36 (stainless steel can be used upon request) |
|---|---|
| Finish | Plain (black steel), zinc plated, or hot-dip galvanized |
Features
- Save installation time
- Simple & easy to use
- Available length: 2.5 & 3 meters
- Available in slotted & blank type
Sizes and part numbers
| Part no | Type | Double/Single | Blank/Slotted | L | H | A | Thickness | Standard length |
|---|---|---|---|---|---|---|---|---|
| SAMCSB-4040-A-3000 | A | Single | Blank | 41.6 | 39.6 | 20 | 2 | 3000 |
| SAMCSB-4020-A-3000 | A | Single | Blank | 41.6 | 19.6 | 20 | 2 | 3000 |
| SAMCSS-4040-A-3000 | A | Single | Slotted | 41.6 | 39.6 | 20 | 2 | 3000 |
| SAMCSS-4020-A-3000 | A | Single | Slotted | 41.6 | 19.6 | 20 | 2 | 3000 |
| SAMCSB-4040-B-3000 | B | Single | Blank | 41.6 | 39.6 | 21.3 | 2 | 3000 |
| SAMCSB-4020-B-3000 | B | Single | Blank | 41.6 | 19.6 | 21.3 | 2 | 3000 |
| SAMCSS-4040-B-3000 | B | Single | Slotted | 41.6 | 39.6 | 21.3 | 2 | 3000 |
| SAMCSS-4020-B-3000 | B | Single | Slotted | 41.6 | 19.6 | 21.3 | 2 | 3000 |
| SAMCDB-4080-A-3000 | A | Double | Blank | 41.6 | 79.2 | 20 | 2 | 3000 |
| SAMCDB-4040-A-3000 | A | Double | Blank | 41.6 | 39.2 | 20 | 2 | 3000 |
| SAMCDB-4080-B-3000 | B | Double | Blank | 41.6 | 79.2 | 21.3 | 2 | 3000 |
| SAMCDB-4040-B-3000 | B | Double | Blank | 41.6 | 39.2 | 21.3 | 2 | 3000 |
Catalogue reference: page 30.
