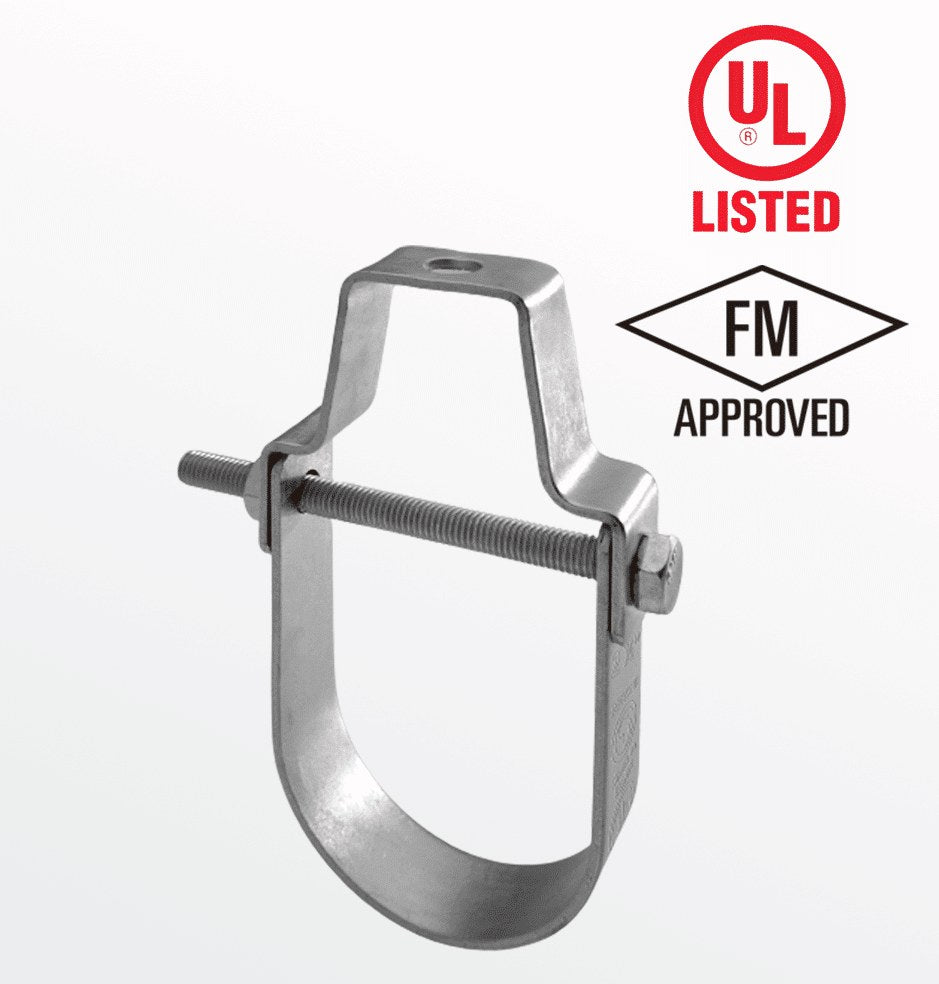

Standard Clevis Hanger
Manufactured in Egypt by AFROFIX. Prices and availability on request.
Overview
The AFROFIX clevis hanger is a UL Listed and FM Approved pipe hanger for insulated and non-insulated horizontal pipes, from 3/4" (20 mm) up to 30" (750 mm). It hangs from a threaded rod, allows vertical adjustment after installation, and its 15° swing lets the pipe feed through without being pinched.
Clevis hangers are made in Egypt at our factory in 6th of October City from carbon steel EN 10111 DD11, supplied plain, zinc plated or hot-dip galvanized. They are made to MSS SP-58 Type 1 and UL 203, for sprinkler, fire-fighting and general MEP pipework.
It is part of the AFROFIX range of fire fighting pipe supports and pipe hangers and clamps, within our complete range of electromechanical supports, manufactured in Egypt since 1981. Send us your drawings or BOQ for a quotation.
To support insulated & non-insulated horizontal pipes
Specification
| Size range | 3/4" (20 mm) to 30"(750 mm) |
|---|---|
| Material | Carbon steel EN 10111 DD11 (stainless steel can be used upon request) |
| Finish | Plain (black steel), zinc plated, or hot dip galvanized |
| Approvals | UL Listed, FM Approved |
Features
- Allow vertical adjustment for the hanger
- Allow small horizontal movements in the pipeline, without transferring it to the hanger suspended rod
- A 15° swing in either direction allows the pipe to easily feed through without being pinched during installation time
- Curved edges to facilitate handling and installation
- A pipe sleeve is installed over the cross bolt to prevent deformation of the clevis bottom under pipe weight (for sizes 8" and bigger)
Compliance
- Complies with the FM standard: FM 1951, 1952, 1953 (December 2016)
- Completed with the Manufacturers Standardization Society MSS SP-58 Type 1
- Complies with UL 203 (Pipe hanger equipment for fire protection service)
- Complies with the National Fire Protection Association (NFPA) section
Notes
- The UL-listed sizes are ¾" to 10" only
- The FM-approved sizes are ¾" to 4" only
- Sizes (3/4", 12", 14", 16", 18", 20", 24", 30") are available upon request
- Hanger sizes less than 95 mm (3") have an intermediate bolt and nut
- Hanger sizes greater than or equal to 95 mm (3") have an intermediate threaded rod and 2 nuts
- Hanger Rod isn't included
Sizes and part numbers
| Part no | inch | mm | D | H | A | B | M1 Rod | M2 Cross rod | Design Load (KN) |
|---|---|---|---|---|---|---|---|---|---|
| CHS_UL_FM-075_030 | 3/4 | 20 | 30 | 74.0 | 25.5 | 57.0 | M10 | M8 | 3.66 |
| CHS_UL_FM-100_037 | 1 | 25 | 37 | 80.5 | 25.0 | 60.0 | M10 | M8 | 3.66 |
| CHS_UL_FM-125_045 | 1 1/4 | 32 | 45 | 97.0 | 33.5 | 72.5 | M10 | M8 | 3.66 |
| CHS_UL_FM-150_054 | 1 1/2 | 40 | 54 | 113.5 | 41.0 | 84.5 | M10 | M8 | 3.66 |
| CHS_UL_FM-200_065 | 2 | 50 | 65 | 130.5 | 46.0 | 96.0 | M10 | M8 | 3.66 |
| CHS_UL_FM-250_077 | 2 1/2 | 65 | 77 | 170.0 | 62.0 | 128.0 | M12 | M10 | 5.35 |
| CHS_UL_FM-300_095 | 3 | 75 | 95 | 189.5 | 63.0 | 138.0 | M12 | M10 | 5.35 |
| CHS_UL_FM-400_118 | 4 | 100 | 118 | 215.5 | 66.0 | 152.5 | M12 | M10 | 10.2 |
| CHS_UL-500_145 | 5 | 125 | 145 | 249.5 | 69.5 | 173.0 | M12 | M12 | 10.2 |
| CHS_UL-600_175 | 6 | 150 | 175 | 277.5 | 70.0 | 186.0 | M16 | M12 | 16 |
| CHS_UL-800_225 | 8 | 200 | 225 | 340.0 | 78.0 | 223.5 | M16 | M16 | 20 |
| CHS_UL-1000_278 | 10 | 250 | 278 | 404.0 | 87.0 | 261.0 | M20 | M16 | 20 |
| CHS-1200_335 | 12 | 300 | 335 | 490.0 | 85.0 | 314.0 | M22 | M20 | 20 |
| CHS-1400_365 | 14 | 350 | 365 | 531.0 | 91.0 | 341.0 | M24 | M22 | 23.1 |
| CHS-1600_415 | 16 | 400 | 415 | 596.0 | 104.0 | 380.0 | M24 | M24 | 23.1 |
| CHS-1800_470 | 18 | 450 | 470 | 670.0 | 118.0 | 425.0 | M24 | M27 | 23.1 |
| CHS-2000_520 | 20 | 500 | 520 | 744.0 | 127.0 | 471.0 | M30 | M30 | 37.2 |
| CHS-2400_620 | 24 | 600 | 620 | 869.0 | 152.0 | 546.0 | M30 | M30 | 37.2 |
| CHS-3000_820 | 30 | 750 | 820 | 1123.0 | 202.0 | 700.0 | M30 | M30 | 37.2 |
Catalogue reference: page 12.
