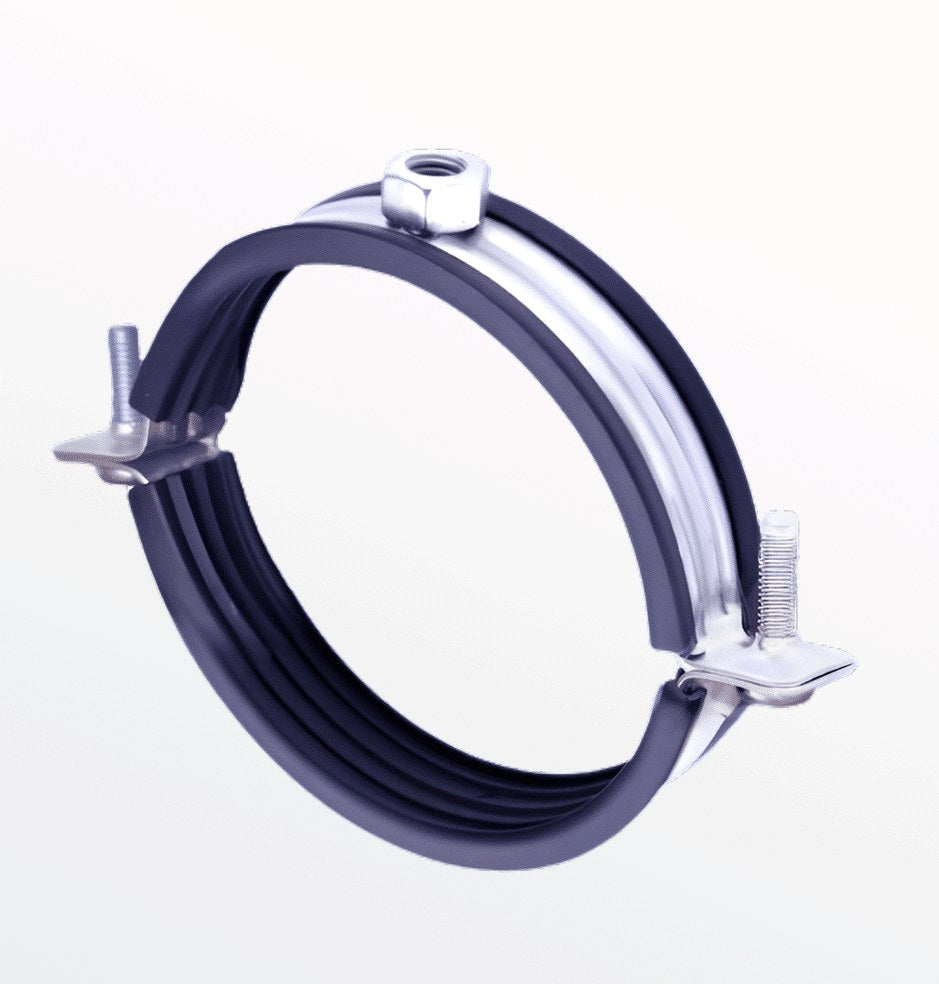

DSM Pipe Clamp with PVC Lining
Manufactured in Egypt by AFROFIX. Prices and availability on request.
Overview
The AFROFIX DSM pipe clamp supports vertical or horizontal pipelines from 1/2" (15 mm) to 6" (150 mm). Its PVC lining insulates noise between the pipe and the support, and it assembles quickly and safely with a hex-head Phillips bolt.
DSM pipe clamps are made in Egypt from cold-rolled carbon steel, supplied plain or zinc plated, for plumbing, drainage and HVAC lines in residential, commercial and industrial buildings.
It is part of the AFROFIX range of plumbing pipe clamps and supports and pipe hangers and clamps, within our complete range of electromechanical supports, manufactured in Egypt since 1981. Send us your drawings or BOQ for a quotation.
To support vertical or horizontal pipelines
Specification
| Size range | From1/2"(15 mm) to 6" (150 mm) |
|---|---|
| Material | Cold-rolled carbon steel |
| Finish | Plain (black steel) or zinc plated |
Features
- Easy and safe assembly through a hex head Phillips bolt
- A PVC lining for noise insulation
Sizes and part numbers
| Part no | inch | mm | D | M2 | M1 | L | H | W | Design Load (KN) |
|---|---|---|---|---|---|---|---|---|---|
| DSM-027 | ½ | 15 | 20-22 | M6 | M8 | 67 | 38 | 20 | 1.63 |
| DSM-034 | ¾ | 20 | 25-28 | M6 | M8 | 74 | 44 | 20 | 1.63 |
| DSM-040 | 1 | 25 | 31-35 | M6 | M8 | 80 | 51 | 20 | 1.63 |
| DSM-047 | 1 ¼ | 32 | 39-43 | M6 | M8 | 88 | 58 | 20 | 1.63 |
| DSM-056 | 1 ½ | 40 | 48-51 | M6 | M8 | 96 | 67 | 20 | 1.63 |
| DSM-069 | 2 | 50 | 60-64 | M6 | M8 | 109 | 80 | 20 | 1.63 |
| DSM-082 | 2 ½ | 65 | 72-76 | M6 | M10 | 122 | 95 | 20 | 1.63 |
| DSM-095 | 3 | 80 | 87-90 | M6 | M10 | 136 | 110 | 25 | 1.83 |
| DSM-120 | 4 | 100 | 109-115 | M6 | M10 | 161 | 134 | 25 | 1.83 |
| DSM-174 | 6 | 150 | 159-169 | M6 | M10 | 216 | 188 | 25 | 2.66 |
Catalogue reference: page 15.
