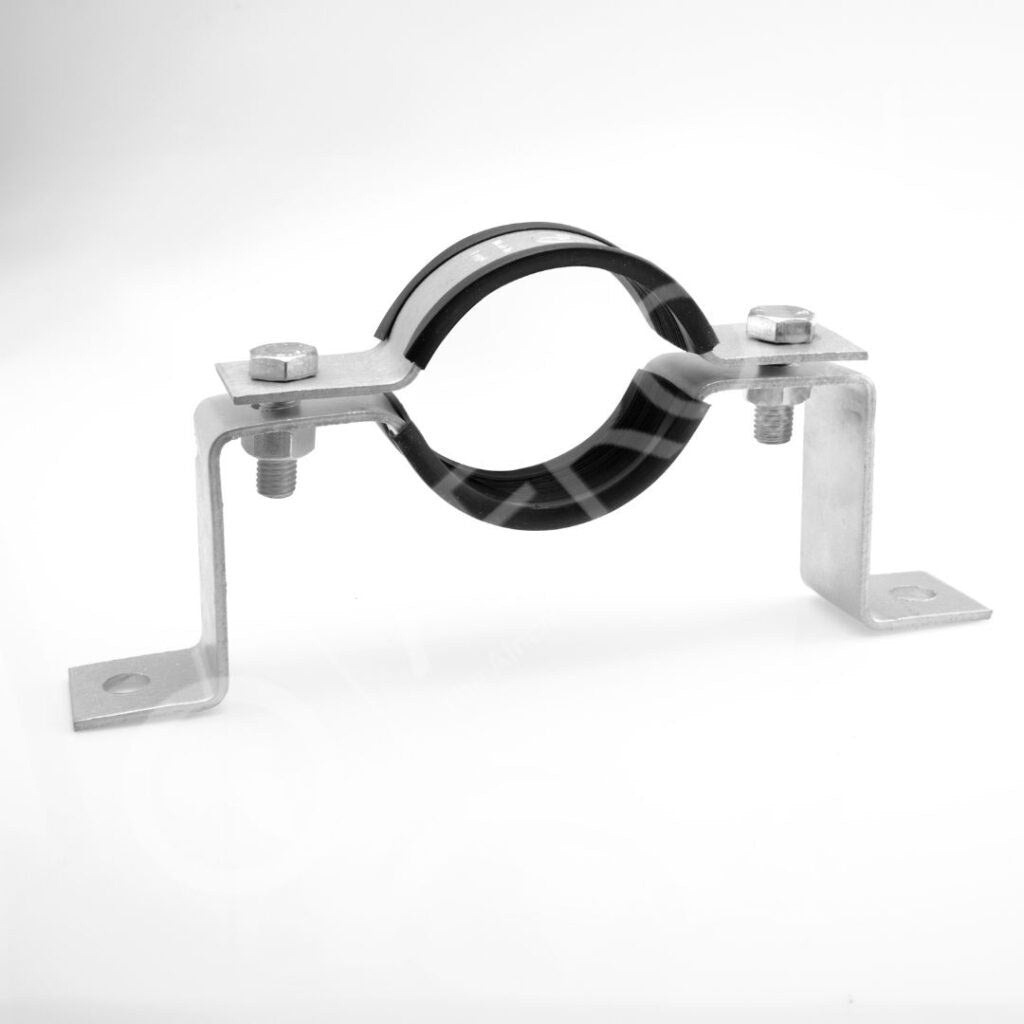

Offset Pipe Clamp
Manufactured in Egypt by AFROFIX. Prices and availability on request.
Overview
The AFROFIX offset pipe clamp holds pipelines at a fixed distance from a wall or floor, for sizes from 1/2" (15 mm) to 8" (200 mm). The offset distance can be made to suit the site. It is not intended for use as a riser clamp.
Offset pipe clamps are made in Egypt from A36 carbon steel, plain, zinc plated or hot-dip galvanized. A PVC lining can be added to reduce noise and vibration and to separate copper tubes from the steel clamp.
It is part of the AFROFIX range of plumbing pipe clamps and supports and pipe hangers and clamps, within our complete range of electromechanical supports, manufactured in Egypt since 1981. Send us your drawings or BOQ for a quotation.
To support pipelines running at a definite distance from the wall or floor. (Not to be used as a riser clamp)
Specification
| Size range | From 1/2" (15 mm) to 8"(200 mm) |
|---|---|
| Material | Carbon steel A36 |
| Finish | Plain (black steel), zinc plating, or hot dip galvanized. Nominal pipe Inch mm |
Features
- The offsite distance 'C' can be customized according to the site need
- A PVC lining can be used to prevent electrolysis between the pipe (in case of copper tubes)&the clamp. Also, it acts to reduce noise and vibration in pipe or tubing systems
Sizes and part numbers
| Part no | inch | mm | D | A | B | C | E | H | L | M |
|---|---|---|---|---|---|---|---|---|---|---|
| OPC-023 | 1/2 | 15 | 19-23 | 152 | 67 | 65.5 | 11 | 81 | 183 | M10 |
| OPC-029 | 3/4 | 20 | 23-29 | 158 | 73 | 68.5 | 11 | 87 | 189 | M10 |
| OPC-035 | 1 | 25 | 30-35 | 164 | 79 | 71.5 | 11 | 93 | 195 | M10 |
| OPC-043 | 1 1/4 | 32 | 37-43 | 172 | 87 | 75.5 | 11 | 101 | 203 | M10 |
| OPC-052 | 1 1/2 | 40 | 46-52 | 181 | 96 | 80 | 11 | 110 | 212 | M10 |
| OPC-064 | 2 | 50 | 58-64 | 213 | 118 | 86 | 11 | 122 | 244 | M10 |
| OPC-076 | 2 1/2 | 65 | 70-76 | 225 | 130 | 92 | 11 | 134 | 256 | M10 |
| OPC-092 | 3 | 80 | 87-92 | 241 | 146 | 100 | 11 | 150 | 272 | M10 |
| OPC-119 | 4 | 100 | 112-119 | 276 | 173 | 115.5 | 13 | 181 | 309 | M12 |
| OPC-143 | 5 | 125 | 137-143 | 300 | 197 | 127.5 | 13 | 205 | 333 | M12 |
| OPC-173 | 6 | 150 | 166-173 | 370 | 247 | 142.5 | 13 | 235 | 403 | M12 |
| OPC-220 | 8 | 200 | 214-220 | 417 | 294 | 166 | 13 | 282 | 450 | M12 |
Catalogue reference: page 19.
